Description
| Specification | Details |
|---|---|

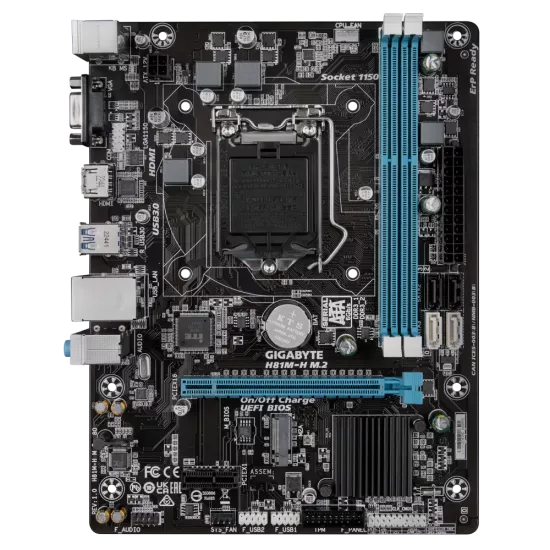

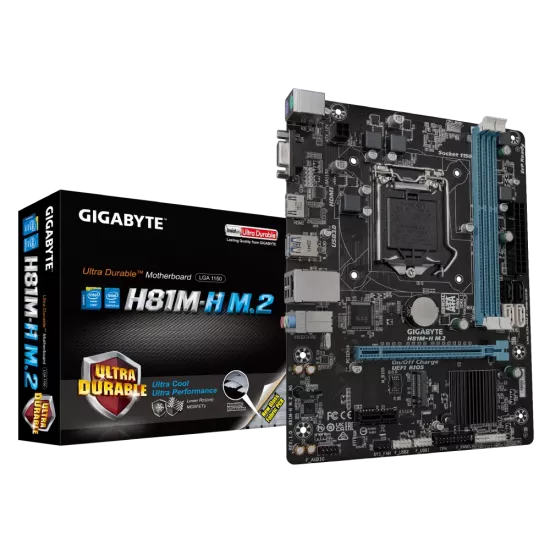

| Model | Gigabyte H81M-H M.2 |
| CPU Support | Supports 4th Generation Intel® Core™ i7/i5/i3/Pentium®/Celeron® processors in the LGA1150 package |
| Chipset | Intel® H81 Express Chipset |
| Memory | 2 x DDR3 DIMM sockets supporting up to 16 GB of system memory; Supports DDR3 1600/1333 MHz memory modules; Dual channel memory architecture; Supports non-ECC and Extreme Memory Profile (XMP) memory modules |
| Graphics | Integrated Graphics Processor with Intel® HD Graphics support; 1 x D-Sub port (max resolution 1920×1200); 1 x HDMI port (max resolution 4096×2160 @ 24 Hz); Maximum shared memory of 1 GB |
| Audio | Realtek® ALC887 codec; High Definition Audio; 2/4/5.1/7.1-channel; Supports S/PDIF Out |
| LAN | Realtek® GbE LAN chip (10/100/1000 Mbit) |
| Expansion Slots | 1 x PCI Express x16 slot, running at x16; 1 x PCI Express x1 slot (PCI Express slots conform to PCI Express 2.0 standard) |
| Storage Interface | 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 2.0 x4/x2 SSD support); 2 x SATA 6Gb/s connectors; 2 x SATA 3Gb/s connectors |
| USB | 2 x USB 3.0/2.0 ports on the back panel; 6 x USB 2.0/1.1 ports (2 on the back panel, 4 via internal headers) |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector; 1 x 4-pin ATX 12V power connector; 1 x M.2 Socket 3 connector; 2 x SATA 6Gb/s connectors; 2 x SATA 3Gb/s connectors; 1 x CPU fan header; 1 x system fan header; 1 x front panel header; 1 x front panel audio header; 2 x USB 2.0/1.1 headers; 1 x serial port header; 1 x Clear CMOS jumper; 1 x Trusted Platform Module (TPM) header |
| Back Panel Connectors | 1 x PS/2 mouse port; 1 x PS/2 keyboard port; 1 x D-Sub port; 1 x HDMI port; 2 x USB 3.0/2.0 ports; 2 x USB 2.0/1.1 ports; 1 x RJ-45 port; 3 x audio jacks |
| Form Factor | Micro ATX Form Factor; 22.6cm x 17.4cm |
| Unique Features | GIGABYTE Ultra Durable™ Technology; GIGABYTE UEFI BIOS; GIGABYTE On/Off Charge™ for USB devices; LAN with high ESD Protection; Solid capacitors for CPU VRM design |
