Description
| Specification | Details |
|---|---|

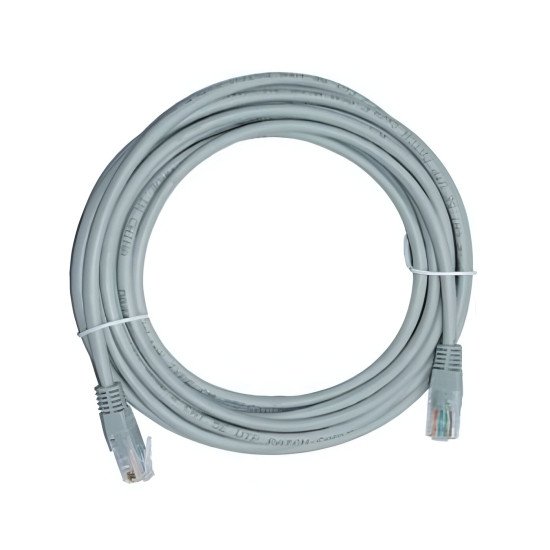

| Unshielded Twisted Pair (UTP) Cable | |
| Metal Conductor | Solid Copper |
| Color Code | Gray |
| Patch Cord Cable Length | 5 Meters |
| Maximum Data Transmission | 1 Gbps |
| Conductor Size | 24 AWG |
| Insulation Material | HD-PE |
| Cable Protective Jacket Material | PVC UL9 |
| RJ-45 Connector | |
| Connector Type | RJ-45 8P with Transparent Color |
| Gold Plated | 30U |
| Contact Blade | Phosphor Bronze |
| Temperature Range | -10 ~ 80 C |
| Dielectric Voltage Withstanding | 500V AC |
| Insulation Resistance | 35M Ohm (max.) |
| Durability | 750 Matching Cycles |
| Cable-to-Plug Tensile Strength | 20lbs (89N) (min.) |
| UL Applications | 250V AC, 2A (max.) |
| Material | Polycarbonate (PC) UL94-V-0 |
